Acid Transport Trailers

Acid Transport Trailers knowledge

8 Things you should know about Acid Transport Trailers

If you are looking for acid tanker trailer, then this is the 100% right place for you. Normally, a V shape stainless steel trailer (stainless trailer) is what you need.

We, DTG Group Trailer is different acid tanker trailer factory, acid transport trailers for sale is one of our product. Mainly export to Africa countries for aicd transport business. We are doing acid trailer manufacture since 1998 year, so you don’t need to worry about we are still manufacture or not.

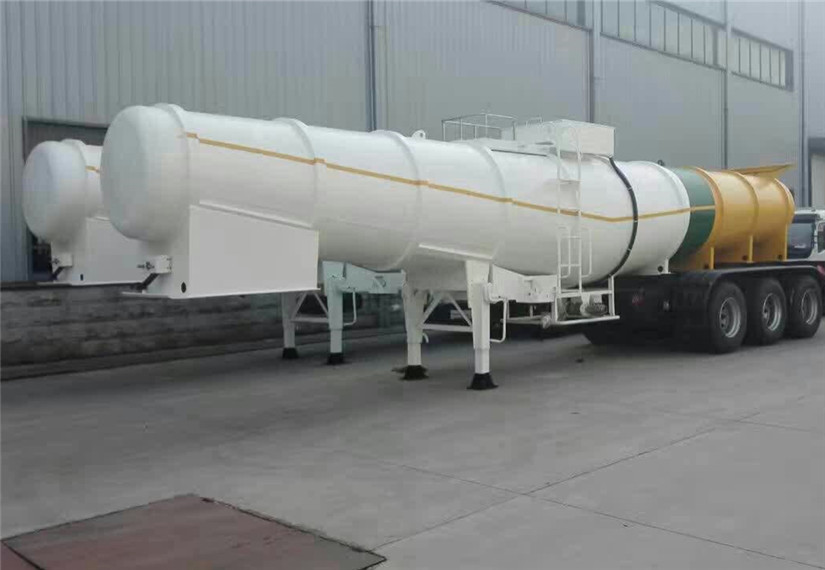

acid transport trailers

1#, What is acid transport trailers ?

About acid transport trailers, it is normally for transporting different kinds of acids, like: Acetic acid, hydrochloric acid, sulfuric acid, hydrofluoric acid, Nitric acid, etc. Among others as used for different transport industrial functions.

acid transport trailers

As it using to transport chemical, so we can also call it as chemical tank semi trailer.

2#, Acid transport trailers dimensions.

Below is the brief specification of acid tanker trailer for your reference only. It can be changed according to your order special request, such as loading capacity, axles number, spring suspension, etc.

Style

3 Axles V Shape Acid Tanker Trailer

Dimension(L*W*H):

11,400 *2,500 *3,400 mm (it can be design different according to your request)

Payload(kgs):

30 to 40 Tons, or others

Material

Stainless steel (mainly using)

Tare weight(kgs):

 7.5 Ton ~ 9 Ton around (depends on your final trailer specification request)

Effective capacity:

18 to 22 cbm (or others)

Thickness

6 mm for shell, 8 mm for dish

Medium:

sulfuric acid

Kingpin

3.5″ (or 2″) bolt-in

Landing gear

28 Ton

Tire size

12R22.5 (or others)

Rim size

9.00*22.5 (or others)

Axle

BPW Brand /Fuwa Brand, Germany, / Ameircan Type

Leafs spring

Spring Suspension (or airbag booster suspension)

Brake system

Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 46L air tank

Discharge valve

DN100mm discharge valve with cover

Manhole

European standard Φ500 with air valve

Spill boxes

Spill boxes with vent valves, Drainage pipes fitted

Tank roof

Anti-corrosion cover

Discharge hose

2 units anti-corrosion hose on both ends

3#, advantages of acid transport trailers for sale.

1. V shape acid tanker trailer make a lower center of gravity, make the acid transport safer, it is very popular in Africa Zambia market.

acid transport trailers

2. Compared second-hand V shape acid tank trailer, the new acid tanker trailers have a longer life span, higher economic benefit, also with the high quality material, to prevent the acid leakage when you’re doing transport.

tank acid transport trailers

3. A new acid tanker trailer can give your clients more confidence in your company. Even cost more in start but have a long-term benefit, and DTG Group Trailer devoted ourselves to supply the best acid tank and service to our whole world clients.

4. Euro standard quality acid tank trailer discharge valves, it makes a low discharge remaining rate and high-efficient discharge.

acid transport trailers

Here is a video to show how the Acid Transport Trailers transport on the road. (the video show is for reference, not V shape semi trailer)

If you need other shape acid tanker trailer types, please contact us for more your special request.

4#, Raw Material of chemical trailers for sale.

The sulphuric acid transported road tankers, hydeo chloric acid transport trailers is made of a multilayered structure, with the outer part made of either stainless steel tanker or an aluminum alloy tanker.
But you know, the stainless steel tanker is resistant against dilute sulfuric acid & dilute hydrochloric acid. So, these acid tanker trailers made of stainless steel cannot be corroded.

So, normally, if you need transport acid, then you normally need to buy a stainless steel trailer (stainless trailer). Of course, it depends on your final request before you confirm.

acid transport trailers

5#, The Inner Part of Acid Transport Trailers.

To prevent further corrosion when transport acid, the inner part of the acid transport tank is made of PE (Polyethylene) lining. This protects the acid tanker trailer inner part from environmental reactions due to the air, it might lead to corrosion in near future.

For this reason, LLDPE (Linear Low-Density Polyethylene), or (HDPE) (High-Density Polyethylene) is used to make the acid tanker trailer inner parts of the dilute sulfuric acid, hydrochloric acid tanker trailer inner.

PE fits this situation well, because it is a raw material that is not to be corroded by hydrochloric acid, or sulfuric acid.

acid transport trailers

6#, How much is a acid transport tank ?

If you need, please contact us to get the details’ quotation.
Different specification price will be different. For 3 axles, spring suspension, the price start from 16,800 USD per unit (FOB price, without shipping cost to your country seaport yet).

7#, do you have used stainless steel tanker trailers for sale, to help us transport acid?

Sorry, we only manufacture new type. If you need used (second-hand) type, you better to buy in your local market directly.

8#, Shipping method of the acid tanker trailer.
It normally using RO-RO / Break Bulk shipping. Because the size is bigger than containers. The details shipping method might be different according to your details specification request.

Order Your DTG Group Custom Acid Transport Trailers.

As soon as you start using yours, you’ll be glad you chose DTG Group trailer. You’ll be even happier when you see the impressive resale value. Place your Acid Transport Trailers order today.

Also, welcome to check our Bulk Cement Trailer Manufacturers article.
If you have any Trailer request, welcome to contact us anytime.
Happy Acid tanker Logistic Business!
For your transport / logistic needs, feel free to contact us using our phone number, email. For more information about DTG Group Trailer, please visit: dreamtruegroup.com. Follow us on FacebookLinkedinYoutubeInstagram, or Pinterest.
