Asphalt Trailer

Asphalt Trailer knowledge

Things you should know about Asphalt Trailer

If you are looking for Asphalt trailer, also called Bitumen trailer. Then this is the 100% right place for you. DTG Group are professional on Asphalt trailer Manufacturer since 1998, we are base in China, and export to the whole world, specially Africa, mainly using for Asphalt / Bitumen transport companies. Only a small quantity’s factory can manufacture asphalt trailer in China, and we are one of the best.

asphalt trailer bitumen trailer

We, DTG Group Trailer is different asphalt trailers for sale factory. Mainly export to Africa countries for asphalt transportation. Each year export more than 500 units to Africa.

What do you call an asphalt trailer

This asphalt trailer is used to transport special cargo, such as asphalt, bitumen, liquid phenol, sulfur, etc. The asphalt tank trailer has a long heat preservation duration.

asphalt trailer bitumen trailer

Asphalt trailer / bitumen trailer working temperature

Normally, it is 200 -500 degree range of operations. Don’t worry, we will handle your request well.

The Heating System of Asphalt trailer / bitumen trailer

The trailer heating tubes are normally installed outside the trailer tank to avoid polluting the liquid in transport. The tubes may pollute the liquid if the tubes are broken.

1, The Coal Burner Type: The heater is safe & has a simple structure. It requires easy maintenance, so it is cost-effective. But, you need know it is inconvenient & inefficient to use.

asphalt trailer bitumen trailer

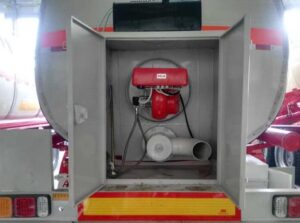

2, The Diesel Burner Type: The diesel burner type heats fast & it has a high level of efficiency. It is not cheap, also it has a high requirement for safety. But, the combustion of the diesel burner type is insufficient. It also generates waste gas.

asphalt trailer bitumen trailer

3, The Electric heating type: This trailer type of heating system is bond with high efficiency, also it is no pollution. It’s a good choice, but you should know, this trailer types price is higher than other types.

Asphalt trailer / bitumen trailer tank raw materials

Normally, the tanker available in carbon steel & stainless steel & aluminum barrels to fit every application as your request.

Specification

Below is the brief Asphalt trailer specification for your reference only. It can be changed according to your special type trailer request. No matter axles, suspension, capacity, tires, etc.

Year

new

Make

DTG Group

Capacity

7500 Gallons

Compartments

1 Compartment or more

Baffles

Yes

Barrel Design

Straight

Brakes

drum brake

Cabinet

None

Compartment Sizes

7500 or others

Design Temp

375

External Valve

4″ Discharge

Hose Carrier

Hose Tubes

Insulated

with

Landing Gear

28 Ton

Location

China (export to the whole world)

Material

Aluminum alloy

Subframe

Aluminum alloy

Suspension

Airbag / spring or others

Thermometer

with

Tire Carrier

with

Tires

12R22.5 or others

Wheels

22.5 x 8.25 or others

Shipping method for Asphalt trailer

RO-RO / Break bulk shipping. Because of the dimension, it is hard to put into containers. But if you order small type, it is possible to put into containers, also, it need to tear off the tires and other spare parts.

asphalt trailer bitumen trailer

Manufacturing & Design of Asphalt trailer

asphalt trailer bitumen trailer
asphalt trailer bitumen trailer

The heating pipe is assembly at the bottom of the tank (you already know front the front information). So, the heat loss rate is different for the different parts of the asphalt trailer. The heat loss at the top of the tank is around 29% higher than the rate in other trailer tank parts.

asphalt trailer bitumen trailer

Trailer tanker Steel is used to make the & inner outer layers of the insulated tank trailer. You know, the insulating raw materials are used to make the interlayer. The insulating materials include polyurethane & rock-mineral cotton.

Discharge valve

The Asphalt trailer / bitumen trailer discharge valve is looks like below photo. The quantity can be different as your request.

asphalt trailer bitumen trailer
Some Features of the asphalt trailer

1, Aluminum alloy & steel tanks built for your specific hauling needs, to ensure safe & efficient material transportation.

2, Exclusive system reduces circumference seams for proper expansion & contraction & superior heat retention.

3, Two or Three, or Multi-axle and custom trains for variety of applications. The suspension can be different types too, no matter spring suspension or airbag (booster).

4, Optional pumps for faster unloading when you’re using it.

Order Your DTG Group Custom Asphalt trailer / bitumen trailer.

As soon as you start using yours, you’ll be glad you chose DTG Group trailer. You’ll be even happier when you see the impressive resale value. Place your asphalt / bitumen, and other Transport Trailers order today.

Also, welcome to check out another Container trailer manufactures article.
If you have any Trailer request, welcome to contact us anytime.
Happy Asphalt / bitumen trailer Logistic Business!
