Extendable Flatbed Trailer

Extendable Flatbed Trailer knowledge

Things you should know about Extendable Flatbed Trailer for sale

If you are looking for Extendable Flatbed Trailer for sale, then this is the 100% right place for you. DTG Group are professional on flatbed trailer Manufacturer since 1998, we are base in China, and export to the whole world, specially Africa, mainly using for 40ft & 20ft container transport companies, and it can transport long goods than the normal type flatbed trailer, because it is Extendable.

extendable flatbed trailer

We, DTG Group Trailer is different extendable flatbed trailer manufacturers factory. Mainly export to Africa countries for different type container transportation. Such as Algeria, South Africa, Tanzania, Kenya, Nigeria, Uganda, etc.

What is an extendable flatbed trailer ?

First, What do you do if your load is very long and more than 48ft, or even more longer?

Goods that are too long to fit on a 48-foot flatbed semi trailer may be transported on an extendable flatbed trailer.

An extendable flatbed semi trailer configuration is a semi trailer, it is designed and adapted to be hauled through of a tractor truck travelling along a roadway. The extension part on the semi trailer is done efficiently, take loads that may be of different lengths as the job will demand.

extendable flatbed trailer

Extendable flatbed trailer rental ?

As you can see, we are a trailer factory in China, not a rental company. So we don’t have extendable flatbed trailer rental.

If you’re really looking for an extendable flatbed trailer rental, we suggestion you try to find one from your local rental company.

Used extendable flatbed semi trailer ?

Sorry, we only manufacture new extendable semi trailer, not have used extendable flatbed semi trailer. We  suggestion you purchase new trailer than used type.

But if you’re still looking for a used extendable flatbed trailers for sale to saving money, then you can still check your local second-hand trailer market, or check whether someone wants to sale their old used extendable trailers.

The Steering System for extendable flatbed trailer.

This steering system of an extendable trailer, it is comprise a gooseneck steering mechanism, wheel steering mechanism & a matching hydraulic synchronous control circuit.

The gooseneck steering mechanism, it makes use of the truck head’s rotation in relation to the flatbed trailer, it is in order to contract, and  it is expand the steering cylinder in a synchronous manner in relation to the wheel set steering mechanism.

And then, the drives of the axle via the turntable & steering rod at last. If you don’t understand well, welcome to inquiry anytime via this page.

extendable flatbed trailer

Extendable Trailer Dimensions & Capacity.

This extendable flatbed trailer specification is only for your reference, it can be change according to your special request.

It measures 48′ * 102″ in the closed position & extends to 80′ long (can be design)

Length: 48′, extending to 80′ (can be design)

Width: 102″ (can be design)

Loading Capacity: 80,000 lbs GVWR (60,000 in 10′ span, can be revise too)

Item

Details

Size Parameters

Total length of trailer(mm)

Optional

Gooseneck total length & tail sweeping space radius

3300 / 2200 mm

Working Platform length

as your request

Total height of the trailer (includes the ladder)

3,690 mm(-200 / +450 mm )

Gooseneck height

2,040 mm

Gooseneck & tractor saddle height

1,390 mm

Frame height (can be raised & lowered)

1,080 mm(-200 / +450 mm )

Suspension lift total stroke

650 mm

Saddle center to first axis distance

can be chosen

Wheelbase

1,500 mm

Vehicle width (can be extended)

3000, 3300, 3600, 3700 mm (or others)

Track (can be extended)

Optional

Single side ladder size (length × width)

can be chosen

Structural parameters

Axis / Suspension / Number of wheels

can be chosen

Tire specifications

can be choose

Traction pin

90 mm (3.5”) Or 50 mm (2″)

Main structural material yield strength

≥ 660 MPA

Suspension maximum steering angle

40°

Trailer minimum turning radius

11500 mm

Weight parameters

Curb weight

can be chosen

Maximum load capacity

can be chosen

Axle load

26t @ 20km/h (16.4t @ 80km/h)

5th wheel load (saddle load)

35 Ton

Dynamic performance

Full load maximum speed

20 km/h or others

No-load maximum speed

80 km/h or others

Suspension System

Air ride or Hydraulic lifting suspension

Gooseneck

Articulated gooseneck with hydraulic pitch & hydraulic steering

Steering type

3-axis full steering, synchronized with gooseneck hydraulic

Brake type

Air brake with ABS (or not)

Width extension type

Articulated hydraulic extension

Ramp type

Hydraulic ladder or spring ladder

extendable flatbed trailer

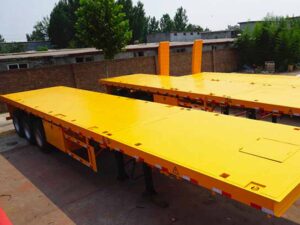

Pictures of extendable flatbed trailer

Here are some pictures to show extendable flatbed trailer details, it can have different design too. if you have any special request, welcome to contact us via email: info@dreamtruegroup.com

When open.

extendable flatbed trailer
extendable flatbed trailer

When close.

extendable flatbed trailer
extendable flatbed trailer

Manufacture capacity.

If we are not very busy, we can manufacture 400 units per month different trailer. For the extendable flatbed trailer, each month can manufacture around 100 units. So cooperate with us is not problem, you don’t need to worry about delivery time at all.

container trailer manufacturers

Shipping method for extendable flatbed trailer.

RO-RO & Break bulk shipping. Because of the size & design, it cannot using container shipping.

Video show.

Here is a brief video to understand more about our DTG Group Trailer.

Order Your DTG Group Custom extendable flatbed trailer.

As soon as you start using yours, you’ll be glad you chose DTG Group trailer. You’ll be even happier when you see the impressive resale value. Place your extendable flatbed Trailers order today.

Also, welcome to check out another Removable Gooseneck article.
If you have any Trailer request, welcome to contact us anytime.
Happy extendable flatbed trailer Logistic Business!
